AAA LR03-2B Business Alkaline Battery

The AAA LR03-2B Business Alkaline Battery is a remarkable strength source designed specifically for professional use. This battery gives dependable and lengthy-lasting performance, making it for plenty of electronic devices. With its advanced generation and sturdy creation, it ensures a constant and efficient power deliver to your enterprise desires. Whether you are relying on it for critical workplace equipment or portable gadgets throughout conferences and shows, this battery by no means disappoints. Trust the AAA LR03-2B Business Alkaline Battery to offer the reliable energy required to preserve your business walking smoothly.

+86-15335001258 / +86-15601503798 [email protected]

PREV: AAA LR03-4B Business Alkaline Battery NEXT:D LR20-2B Business Alkaline Battery

Parameter
Detailed Description
Get A Free Quote

Model:	LR03-2B
Standard:	1.5V
Product Size:	10.5（D）*44.5（H）mm
Weight:	10.5g
Package:	Shrink/hang card
Certification:	CE, ROHS, SGS, REACH, UL, KC, UN38.3, MSDS

1. Scope

This specification provides the technical requirements of an alkaline manganese dioxide battery(LR03). The requirements and size should satisfy or above GB/T8897.1 and GB /T8897.2 if there are no other detail requirements.

1.1Reference Standards

GB/T8897.1 (IEC60086-1,MOD)（Primary Battery Part 1:General）

GB/T8897.2 (IEC60086-2,MOD)（Primary Battery Part2:Size and Technical requirements）

GB8897.5 (IEC 60086-5,MOD)（Primary Battery Part5：Safety of batteries with aqueous electrolyte）

1.2Environmental Protection Standard

The battery meets the standard of EU battery directives 2006/66/EC.

2. Chemical system, Voltage and Designation

Chemical system：Zn-MnO2(KOH),without Hg & Cr

Nominal Voltage:1.5V

Designation : IEC: LR03 ANSI: AAA JIS: AM-4 Others:4003, E92

Operating Temp Range Spec of -20℃ to +60℃

3. Battery Size

Battery meets the picture standard

3.1 Inspection Tool

Using vernier calipers which precision is up 0.02mm. to avoid short-circuit, should paste one insulation material on one end of the vernier calipers.

3.2 Acceptance Method

Using GB2828.1-2003 sampling program, special sampling S-3,acceptance quality limitation: AQL=1.0

4. Weight and discharging capacity

Battery weight about:10.5g

Discharging capacity:1000mAh(Loading75Ω，4h/day,20±2℃ RH60±15%,End-point Voltage0.9V)

5. Open circuit voltage, loading voltage and short-circuit current

Project	Open circuit Voltage（V）	Loading Voltage（V）	Short-circuit Voltage（A）	Sampling Voltage
In 2 months New battery	1.59	1.40	5.00	GB2828.1-2003 One Sampling, special sampling S-4, AQL=1.0
12 months storage at room temperature	1.56	1.35	4.00
Inspection Condition	Loading 3.9Ω, loading time 0.3s，temp:20±2℃

6. Discharging Ability

Discharging Temp：20±2℃
Condition			GB/T8897.2 Requirements	Shortest Average Discharging Time
Load	Discharging Way	End-point Voltage		2 months new battery	12 months storage battery
10Ω	1h/d	0.9 V	6h	7.5h	6.8h
75Ω	4h/d	0.9 V	50h	60h	55h
5.1Ω	4min/h,8h/d	0.9 V	145min	160min	145min
24Ω	15s/min,8h/d	1.0 V	14.5h	18h	16h
20Ω	24h/d	0.9 V	/	15h	13.5h
3.9Ω	24h/d	0.9 V	/	135min	110min

Accordance of the shortest discharging time

1）Testing 9 batteries of each discharging way；

2）The result of the average discharging time from each discharging standard shall be equal to or more than the average time requirement; no more than one battery has a service output less than 80% of the specified requirement；

3）The result of the average discharging time from each discharging standard shall be equal to or more than the average time requirement, if one battery has a service output less than 80% of the specified requirement then take another 9 pieces to test again. This lot of batteries are qualified if the result meets the NO.2 provision. If not qualified then will not test again.

7. Anti-leakage ability

Project	Condition	Requirements	Qualified Standard
Over Discharging	Continuous discharging 48h in 20±2℃,huminity60±15%, load 10Ω condition.	No leakage by visual inspection	N=9 Ac=0 Re=1
High-temp storage	Storing in 60±2℃, relative humidity 90% condition for 20 days.		N=30 Ac=1 Re=2

8. Safety Requirements

Project	Condition	Requirements	Qualified Standard
External Short-circuit	Using wire to connect positive and negative poles in 20±2℃ for 24h.	No Explosion	N=5 Ac=0 Re=1
Improper Equipment	4 batteries in series connection, one of them is in reverse connection.	Leakage happened on the reversed battery or the shell temp reduced to room temp	N=4×5 Ac=0 Re=1

9. Signs

The following signs are on the battery body：

1. Model: LR03/AAA

2. Manufacturer and brand: Daily-max

3. Battery Poles：“+”and“-”

4. Expiry date or manufacturing date

5. Warnings.

10. Cautions for using

1. This battery can’t be charged, leakage and explosion may happen when charging.

2. Make sure the battery is in the correct position as + and -.

3. Short-circuit, heating, disposing of into fire, or disassembling of battery is prohibited.

4. The battery can not be forced to discharge, which s to excess gassing and may result in bulging, leakage, and de-crimping of the cap.

5. New batteries and used ones can not be used at the same time. It is recommended to use the same brand when replacing batteries.

6. The battery should be taken out from the device which will not be used for a long time.

7. Exhausted battery should be taken out from the device.

8. Welding batteries are prohibited or it will cause damage.

9. The batteries should be kept from children, if swallowed, contact a doctor immediately.

11. Normal Package

Every 2,3 or 4 batteries are in a shrink package,60 pieces in one inner box, and 12 boxes in one carton.

12. Storage and Expiry

1. Batteries should be put in cool, dry, and air-flowing places

2. The batteries should not be exposed in sunshine or rainy places.

3. Do not mix the batteries without labels

4.Storing in 20℃±2℃, 60%±15%RH condition. The storage time is 3 years.

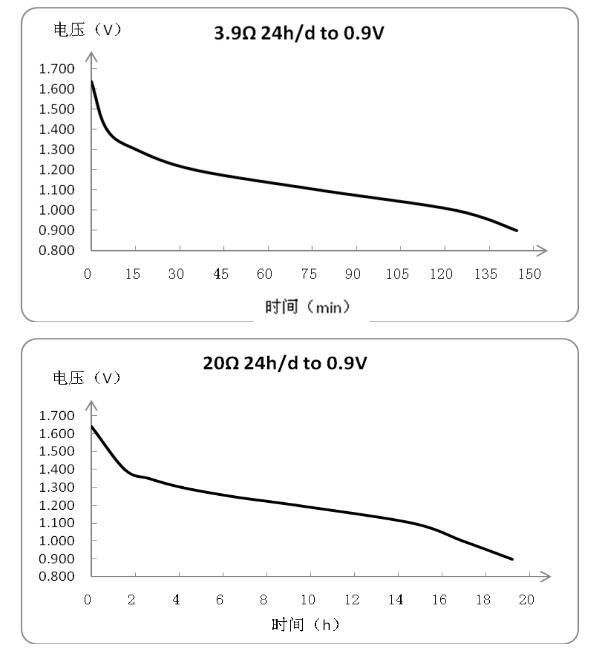

13. Nominal discharging curve

Discharging condition：20℃±2℃，RH60±15%

With the progress of product technology, and technical parameters, the specification will be updated too, please contact Anyida for the latest specifications.
